HILL SIDE FORMS POSITIONED FOR CONCRETE STEPS
CONCRETE STEPS POSITIONED TO MIRROR FOUNDATION WATERPROOFING COUNTER FLASHING PROFILE
- Drainage panel counter flashings provides protection to the above grade section of foundation waterproofing membrane and exposed section of drainage panels
- Drainage panel counter flashings create a protection barrier between the concrete steps and above grade section of the drainage panels
- Hill side change in elevation retaining wall constructed prior to pouring concrete steps
WALKWAY SURFACE DRAIN CONNECTED TO FOUNDATION DRAINAGE
PREFABRICATED DOWN CONNECTED TO FOUNDATION DRAINAGE
- Walkway surface drain collects and drains the walkway surface water to a discharge location
- Prefabricated down spouts connected to foundation drainage allows roof rain water to discharge at curb location
- Hill side cement block retaining wall change in elevations mirror the foundation change in elevations

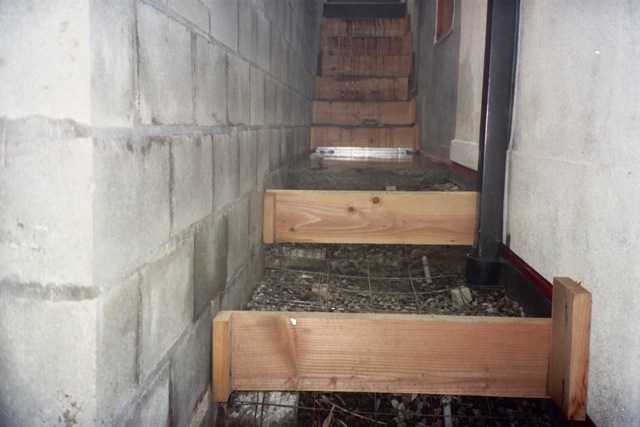

CONCRETE POURED TO HILL SIDE STEP FORMS
CONCRETE POURED DIRECTLY TO THE COUNTER FLASHING PROTECTING THE WATERPROOFING MEMBRANE AND DRAINAGE PANEL
- Down spout end connection is prefabricated round allowing for insertion into drainage pipe
- Drainage panel counter flashings must be sloped during installations to allow for concrete steps and walkway sloping
- Sloping counter flashings allow for a 1" reveal of flashing profile in all finished concrete step locations
Note: Position of red masking tape 1" below top of drainage panel counter flashing
CORRECT CONCRETE SLOPING TO HILL SIDE STEPS
FINISHED CONCRETE POSITIONED 1" BELOW TOP OF FOUNDATION WATERPROOFING DRAINAGE PANEL COUNTER FLASHING
COUNTER FLASHINGS PROFILE MUST BE SLOPED DURING INSTALLATION TO MAINTAIN 1" REVEAL TO FINISHED CONCRETE STEPS
- Retaining wall footing elevation and profile mirrors the counter flashing elevation and profile
- THOROSEAL cementitious waterproofing applied to above grade block wall protecting master bathroom and bedroom from moisture and dampness
- Provides a breathable cementitious waterproofing membrane to cement block residence

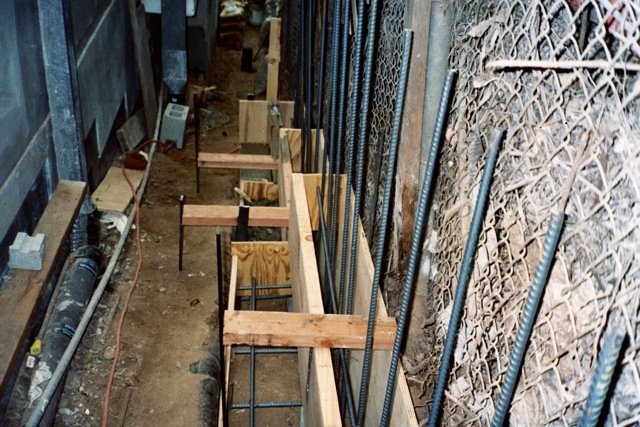

HILL SIDE RETAINING WALL FOOTING FORMS
HILL SIDE L PROFILE STEP FOOTING FORMS CONSTRUCTED PARALLEL TO FENCE PROPERTY LINE
- The footing position and profile mirrors the drainage panel counter flashing profile for correct concrete step placement
- The step footing position and drainage panel position must positioned correctly for foundation waterproofing, retaining wall footing, cement block retaining wall and concrete steps to function as one structural component
- Careful planing and layout necessary for hill side foundation waterproofing
COMPLETED HILL SIDE RETAINING WALL AND STEPS PROFILE
CONTROLLING HILL SIDE RAIN STORM DEBRIS FLOW AND WATER INTRUSION INTO RESIDENCE
- Hill side cement block retaining wall consisted of 18 step footing transitions and 11.25 feet change in elevation from front of residence to rear of residence
- Hill side retaining wall controlling rain storm silt and sediment runoff
- Hill side walkway steps surface water collects at surface drain and discharged at curb location

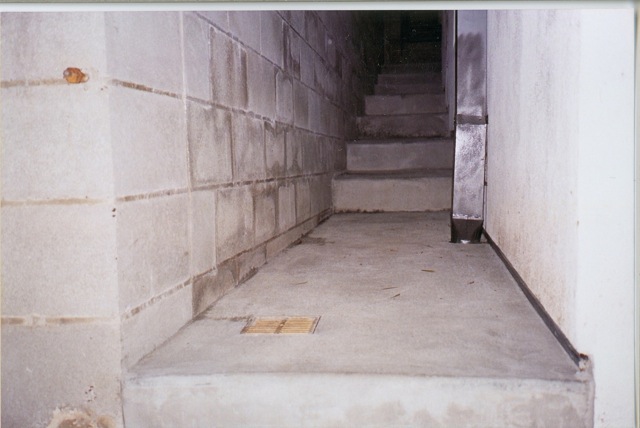

HILL SIDE STEPS WATER RUNOFF CONTROLLED BY SURFACE DRAIN
RAIN WATER ROOF RUNOFF CONTROLLED BY DOWN SPOUT CONNECTED TO FOUNDATION DRAINAGE
- Stucco weep screed positioned 1.5" above concrete surface to allow for stucco wall moisture drainage
- Careful planing and layout necessary for hill side foundation waterproofing components
